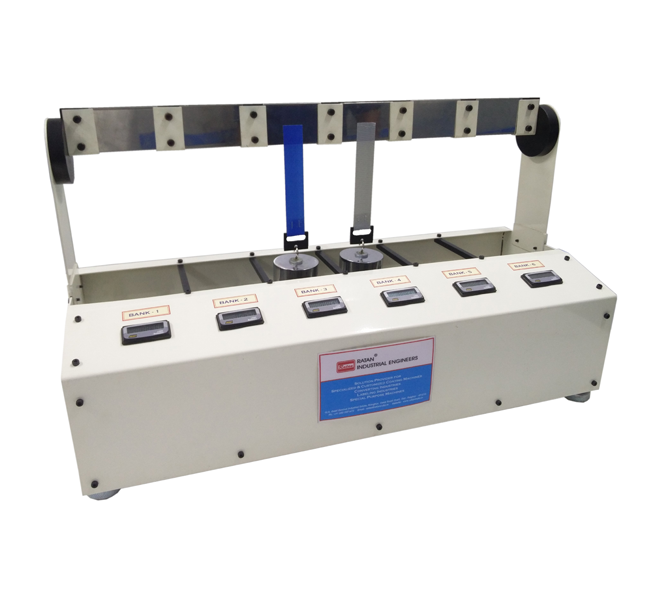

Shear Tester


USAGE

Shear tester is used to measure resistance to shear from standard surface of self-adhesive tapes, pressure sensitive tapes, etc.


SPECIFICATION

  • Rugged construction, capable of withstanding the abuse of the production environment.
  • Easy to read electronic digital timer for individual test panel.
  • Shear banks are designed to be used with 1000gm (1 Kg) weight.
  • Panel rack is marked for standard 2 degree backward angle from vertical, as specified by most shear test methods.
  • It complied ASTM – D3654 standard.
  • Available in 4,6,8,10,12,14,16,18 & 20 Banks.
